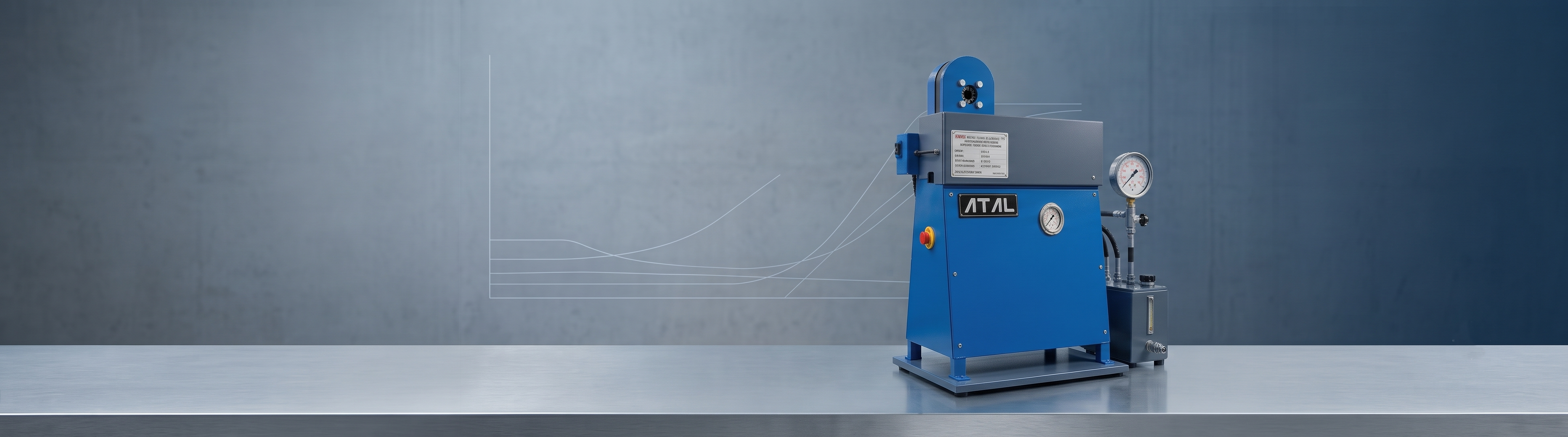

Sanitary Crimping Machine
Sanitary Pipe Crimping Machine Manufacturers in Delhi
Atal Hose & Engineering Works Pvt. Ltd. stands out as a premier Sanitary Pipe Crimping Machine manufacturer in Delhi. Engineered to deliver leak-free, clean joints, our sanitary pipe crimpers are ideal for pharmaceutical, biotechnology, food & beverage, and high-purity piping applications.

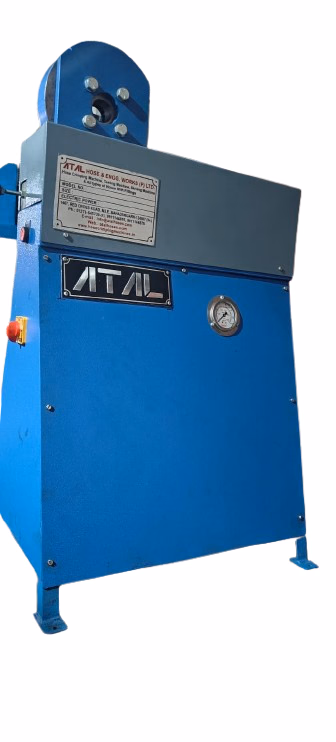

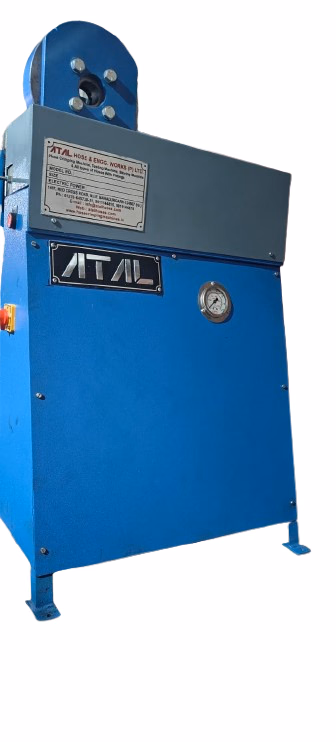

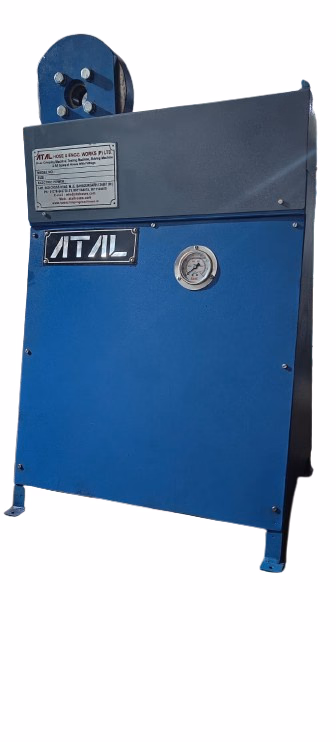

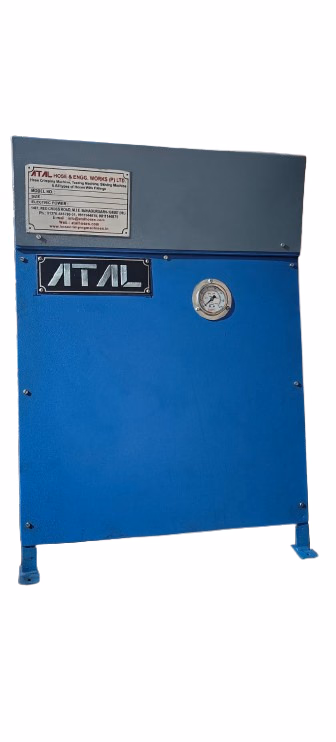

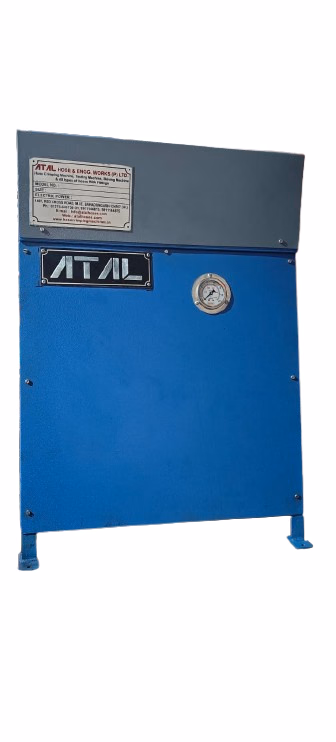

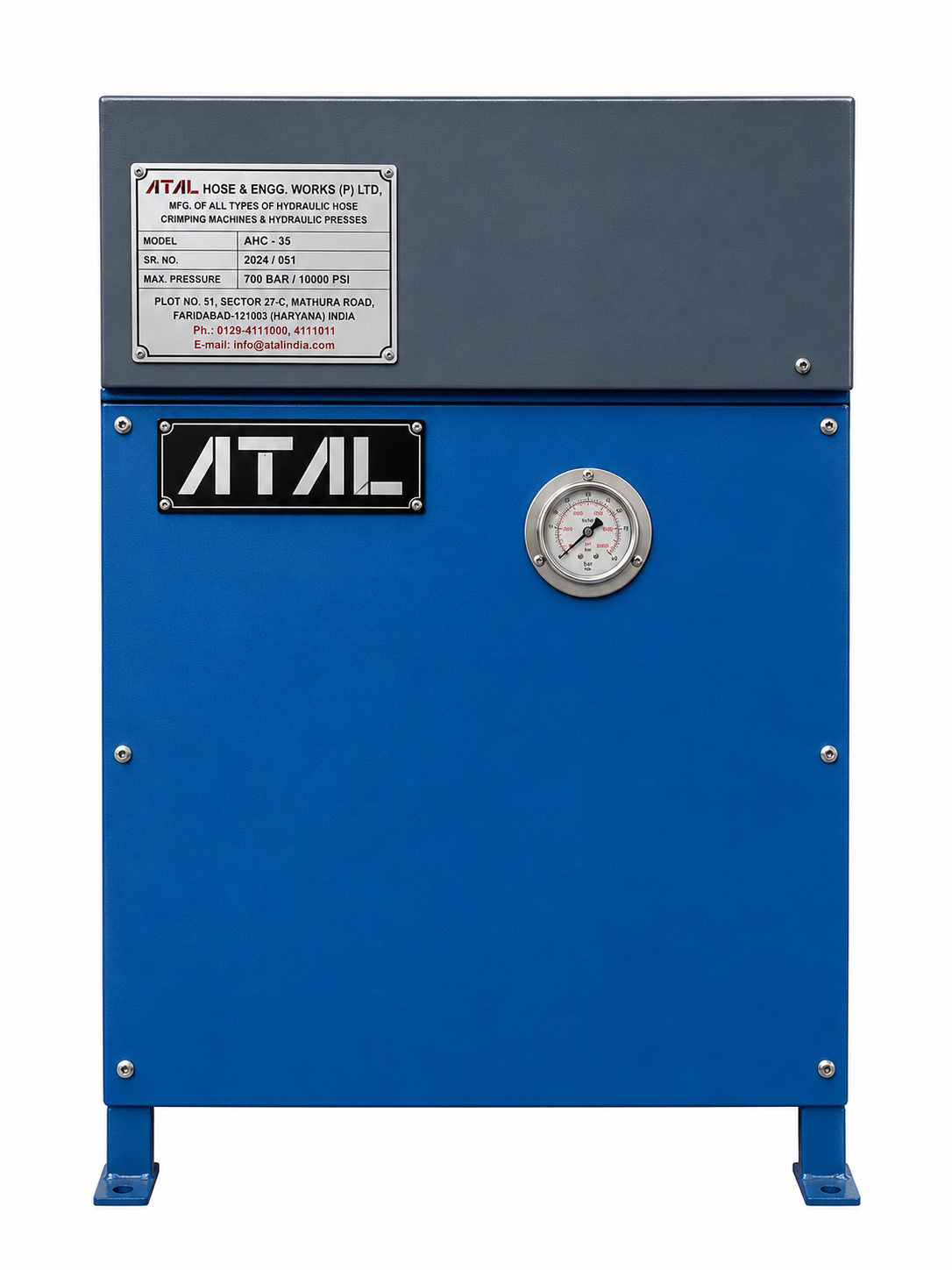

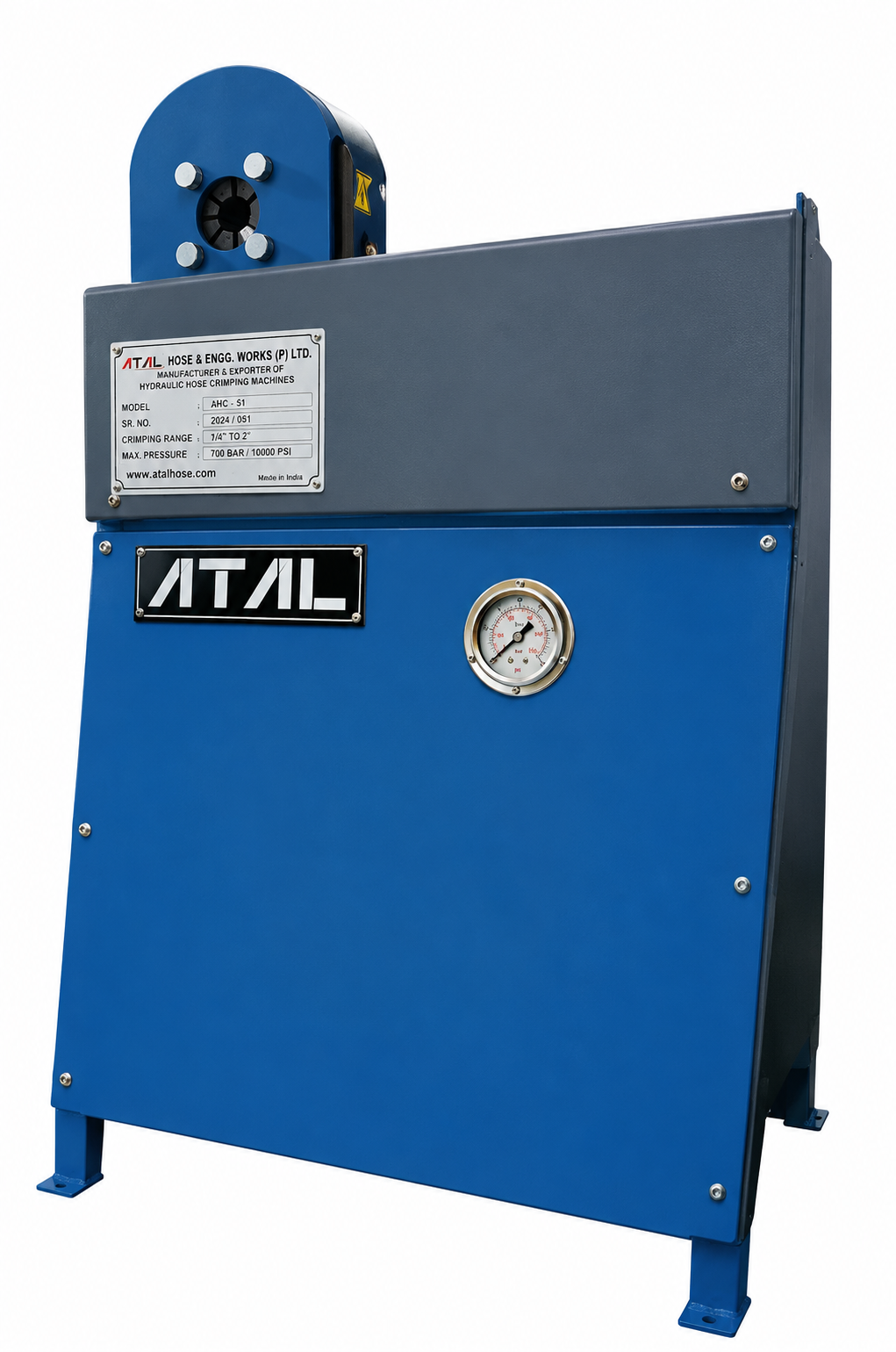

ASCM-300 SANITARY CRIMPING MACHINE
High-Fidelity Telemetry Parameters
| Type | ASCM-300 |
| Crimp range | 1/2” to 2” (12-51 MM) Stainless Steel & Soft Piping |
| Crimping force | 450T |
| Die length | 65 MM LENGTH (1/2” TO 1”) & 80 MM LENGTH (1.1/4” TO 2”) |
| Die size (Sanitary grade) | 1/2” to 2” (8 DIE SET) |
| Micro meter Scale accuracy | 0.02mm |
| Open / Close Time | Open: 1.5s | Close: 8s |
| Maximum opening | 110mm |
| Rated press | 31.5mpa |
| Noise level | 65db |
| Packing Dimension | 750mm * 480mm * 1100mm |
| Weight | 280 kg |
| Motor Spec | ABB / SIEMENS 440V (3 PHASE) / 220V Optional |

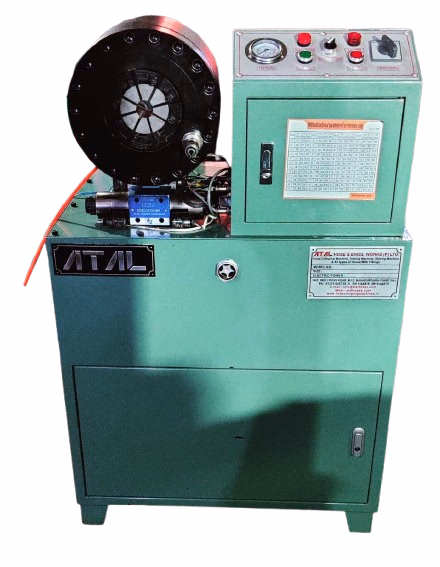

.avif "ASCM-300 Sanitary Pipe Crimping Machine Specifications")
Sanitary Pipe Crimping Machine Suppliers in Delhi
Atal Hose & Engineering Works Pvt. Ltd. is a leading Sanitary Pipe Crimping Machine supplier in Delhi. Our high-precision machines are perfect for local industries that require absolute hygiene and leak-proof crimps for sanitary pipes.
We focus on delivering high-reliability machinery with tailored support, ensuring that our clients get the exact specifications they need for their specialized manufacturing configurations.
Sanitary Pipe Crimping Machine Exporters in Delhi
As a prominent Sanitary Pipe Crimping Machine exporter, Atal Hose Pvt. Ltd. supplies sanitary crimpers across the globe. Each unit is constructed to comply with strict international standards, ensuring safe shipping and long-lasting quality.
Our export network makes it easy for pharmaceutical plants and cleanroom manufacturers worldwide to integrate our premium crimping solutions seamlessly.
Sanitary Crimping Perspectives
Cleanroom Integration
Compact and sleek configuration with paint-free, polished details designed for easy sterilization and food/pharmaceutical grade environments.
Precision Controls
Equipped with highly accurate micrometer dials and intuitive switches to regulate crimp dimensions to the millimeter for perfect fitting assemblies.
Heavy-Duty Cylinders
Industrial hydraulic cylinders designed to output uniform forces up to 450T, keeping sanitary pipe connections absolutely leak-free.
Benchtop Space-Saver
Designed to fit on standard workbenches while maintaining structural integrity for maximum portability and quick access.
Hydraulic Pump Unit
Highly efficient built-in hydraulic power unit designed for silent operation, perfect for clean production areas.
